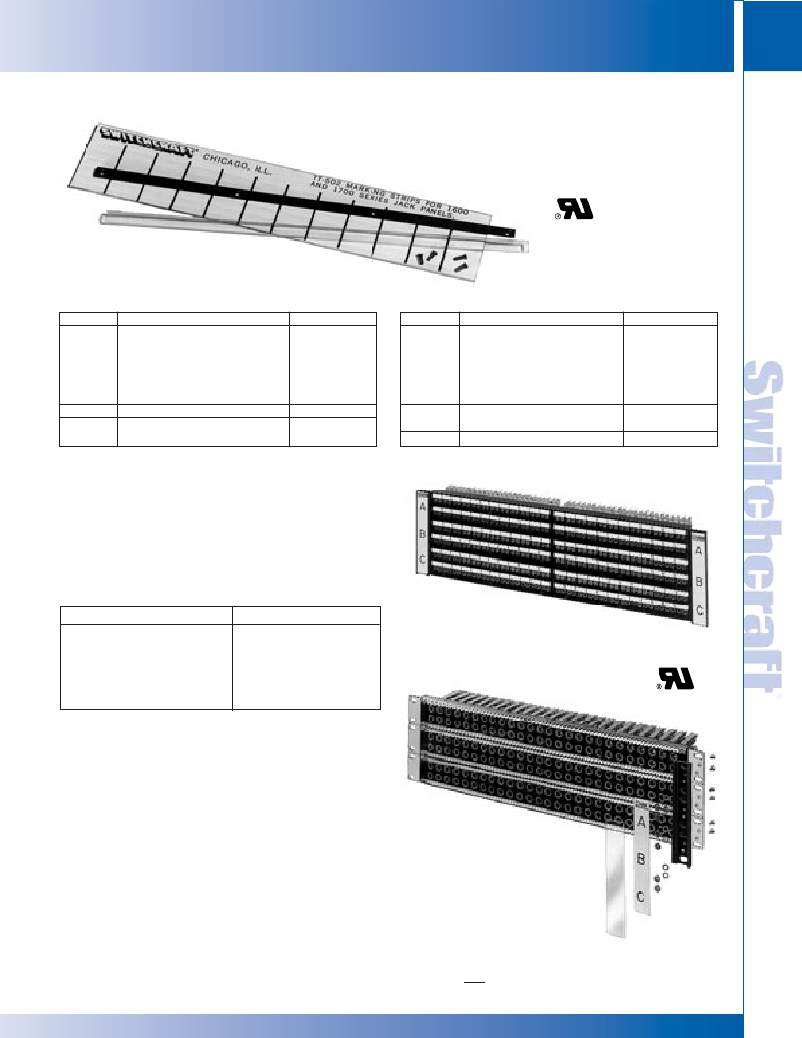

KWIK-CHARGE DESIGNATION STRIPS – DOUBLE HEIGHT
KWIK-CHANGE DESIGNATION STRIPS (DOUBLE HEIGHT)
JACK PANELS
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
?
Kwik-Change ? Designation Strip
DS311 (double height)
DOUBLE HEIGHT DESIGNATION STRIPS
237
Part No.
DS311
Description
Kit (double height) includes:
1-mounting strip (17" long)
For Panels
2600310,
1400315
Part No.
TT516
Description
Kit (double height) includes:
1-mounting strip (8.375" long)
For Panels
1600, B1600,
1700, B1700
1-cover
1-marking strip sheet
(3 strips per sheet)
4-mounting screws
1-cover
1-marking strip sheet
(3 strips per sheet)
4-mounting screws
DS312
DS313
Cover (used with Kit DS311)
Marking strip sheet (used with
Kit DS311)
–
–
TT517
TT518
Marking strip sheet (used with
Kit TT516)
Cover (used with Kit TT516)
–
–
X-WIDE ? VERTICAL DESIGNATION STRIPS
X-Wide designation strips mount on either side (or both) of
standard 19" and 23" wide panels and do not interfere with
horizontally mounted strips. Each kit contains two mounting
brackets which easily fasten with mounting screws provided.
Marking strips and clear plastic covers slide into place. Each
kit fits onto both sides of a jack panel. X-Wide strips are used
on the following panels:
UNDRILLED
1600, A1600, 1700 B1700, TT51
through TT62, 2-, 4- & 6-Wire
TT-Connectorized Jackfields, 2- &
4-Wire TTPC Connectorized
Jackfields, 1200, 1400, 1400320,
PREDRILLED
D1600, D1700, BD1700,
TTD51 through TTD62, 2- 4 &
6-Wire TT-Connectorized
Jackfields, 2 & 4-Wire TTPC
Connectorized Jackfields.
3-row Jack Panels Assembly
with DS323 X-Wide
Designation Strip installed
2600,and 2600320.
SPECIFYING NOTES: Each kit fits both sides of a jack panel (Standard
height 1.75". Also available in 3.5 inch and 5.25 inch heights.
Prefix letter“D” indicates panels have been predrilled countersunk holes to
facilitate mounting X-Wide strips. Series 1200, 1400, & 2600 can be predrilled
on special order.
Assembly sequence
of DS323 X-Wide
Designation Strip
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
